XH-M203 Automatic Water Level Switch

Overview:

The XH-M203 is an automatic water level controller switch.
Note: Float /water level switches that are required for this application are NOT included.

Features:

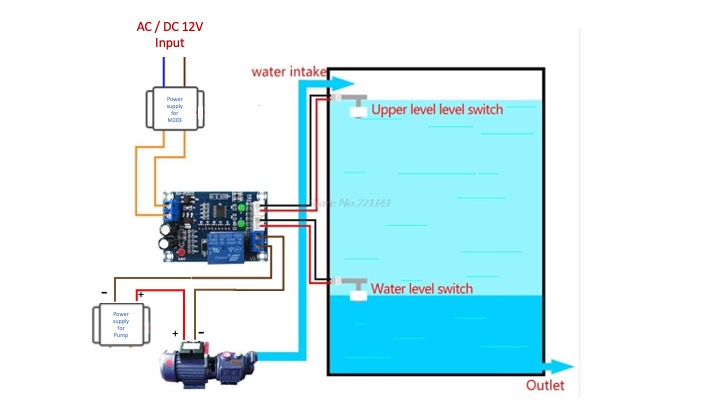

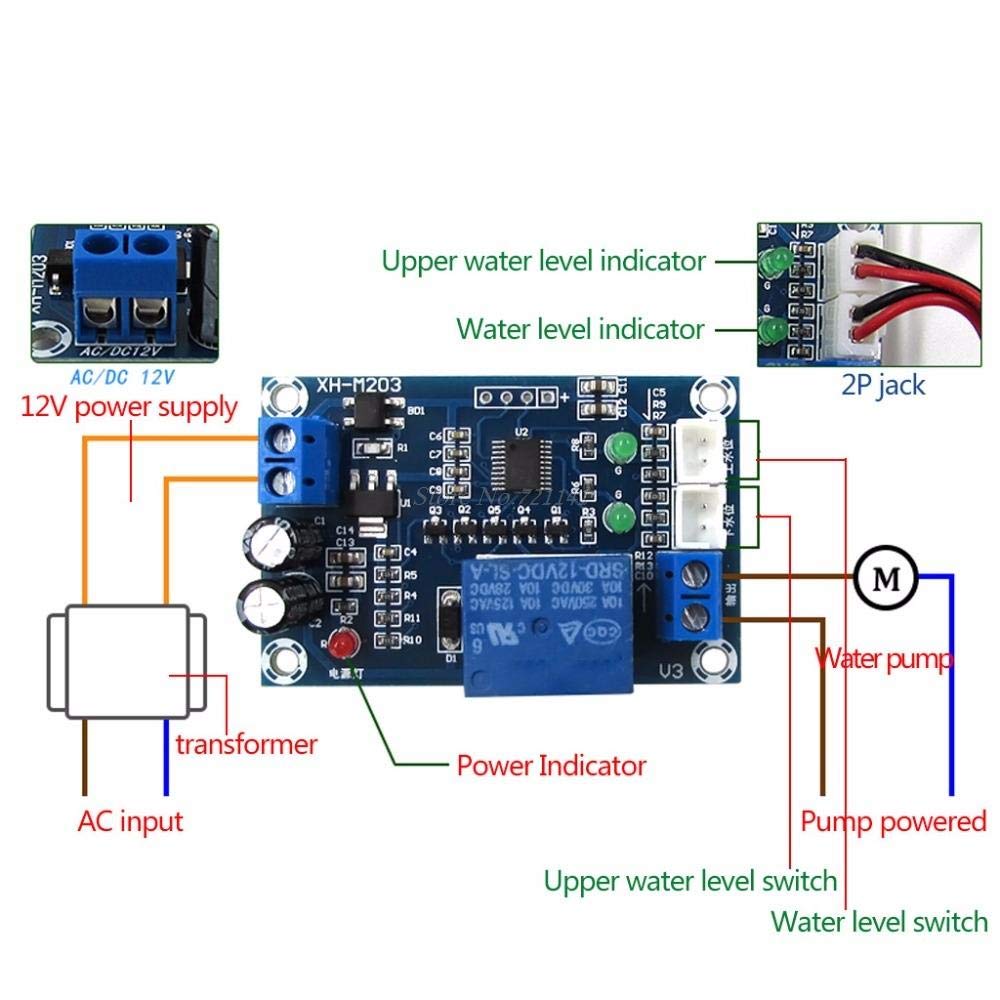

• When the water level is high the relay will close, stopping the pump to add water,
• When the water level low the relay opens, starting the pump to add water,
• No manual management, fully automatic.
• Easy to install and easy to operate.
• Widely used in water conservancy facilities, water towers, buckets, water tanks, pools and so on.

Specification:

• Model: XH-M203
• Working voltage: AC/DC12V
• Output capacity: 10A
• Output type: relay output
• Control type: full automatic

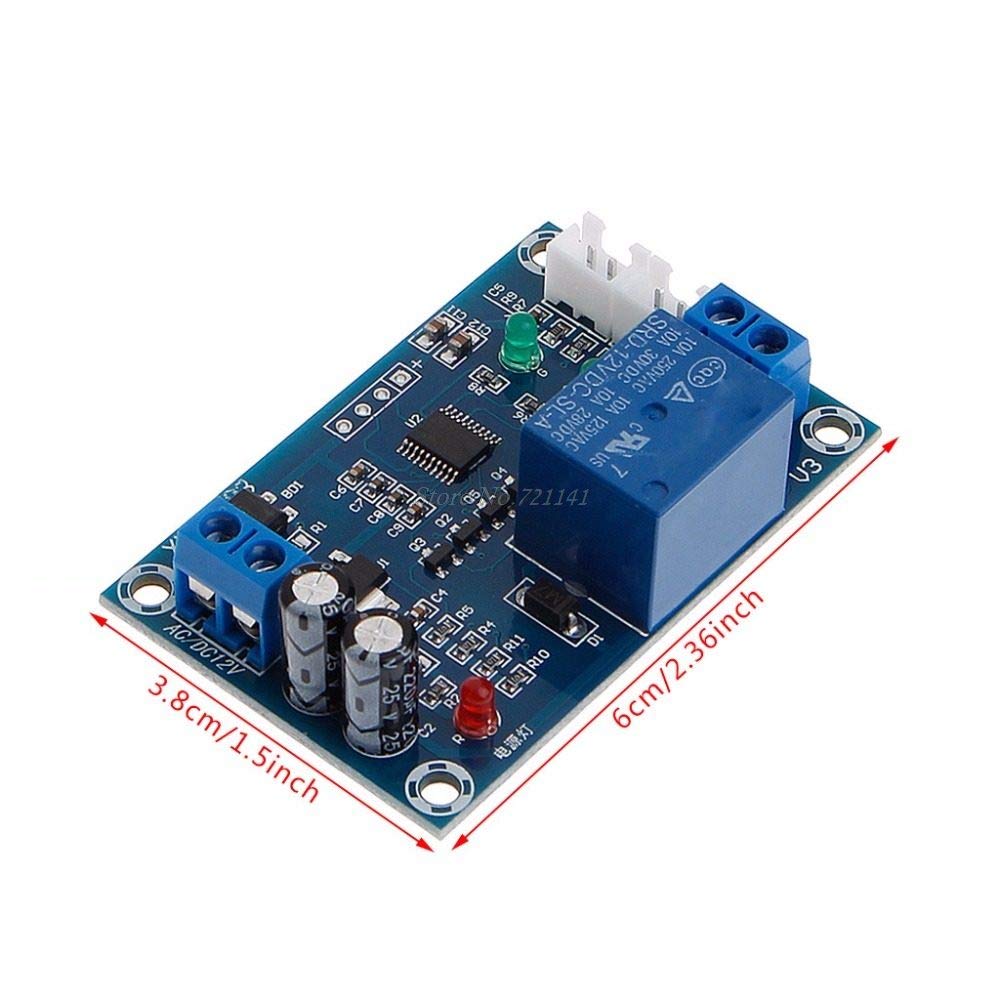

• Size: 6x3.8cm
• Installation: M3 screw hole

Package includes:

• 1 x XH-M203 Automatic Water Level Switch
