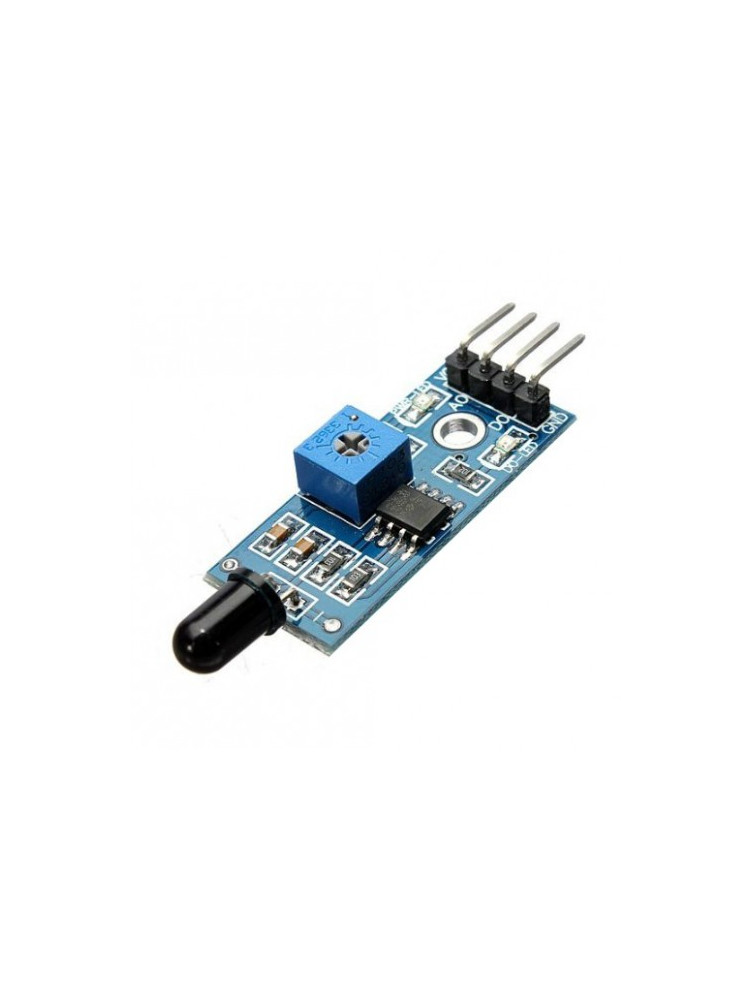

Flame Sensor module

R 25.00

The Flame Sensor can detect flames in the 760 - 1100 nano meter wavelength range. Small flames like a lighter flame can be detected at roughly 0.8m. Detection angle is roughly 60 degrees and the sensor is particularly sensitive to the flame spectrum. An on board LM393 op amp is used as a comparator to adjust the sensitivity level. The sensor has a digital and analog output and sensitivity can be adjusted via the blue potentiometer.

Quantity

Stock Available
2 Items

Overview

Detect flame or wavelength range (approx): 760 nm to 1100 nm, lighter flame test distance is 80cm, the greater flame, the farther test distance

Detection angle is about 60 degree, particularly sensitive to flame photometry

Specs

Supply Voltage: 3.3-5V

Spectrum range: 760nm ~ 1100nm

Detection angle: 0 - 60 degree

Dual Output: Analog & Digital

Sensitivity: Adjustable: Yes

Operating temperature: -25 degrees Celsius ~ 85 degrees Celsius

Size: 32 x 19mm

Mounting hole: 2.0mm

AD-Flame-Sensor
