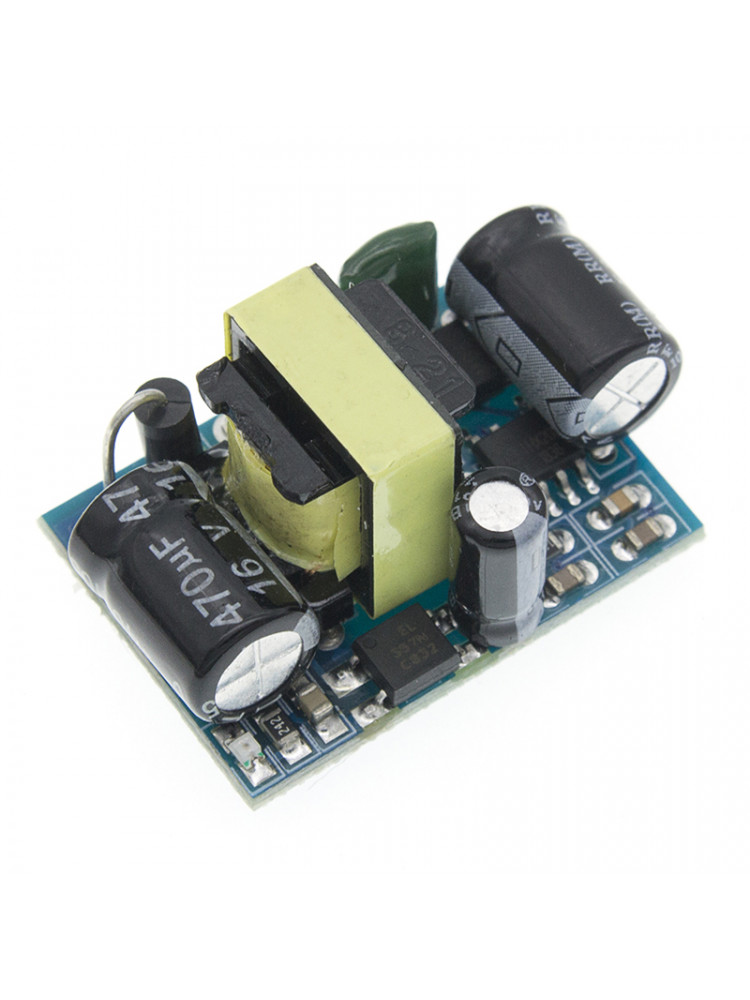

220AC to 5VDC Buck Module

R 70.00

5V 700mA (3.5W) isolated switch power supply module AC-DC buck step-down module 220V to 5V

Quantity

Stock Available
37 Items

Features:

This power source for the isolation industrial-grade module power supply, temperature protection, over current protection and short circuit protection, high and low voltage isolation

AC85 ~ 265V wide voltage input, ac/dc current ,431 precision voltage stability DC5V output

Small size, stable performance, cost-effective



Specifications:

Input voltage: AC 85V ~ 265V 50/60 hz or DC 100V ~ 370V

Input current: 0.0273A(AC110V) 0.014A(AC220V)

Input Inrush Current: 20A

Output voltage: DC 5V (+ / - 0.2 V)

Output current 700 mA

Power 3.5 W

Operating temperature -20~60 degree

Relative humidity 40-90%RH

Output 5V, min current 0a, max current 700mA, peak current: 800mA, output range: 4.8~5.2v, ripple wave: 60mV

Output power:0-4W(DC current)

Output efficiency: 80%

Switch machine overshoot: MAX 10%

Output voltage rise time: MAX 100MS

Output over voltage: 4.8-5.2V, recovery:Lock, restart after recovery

Output over power protection:YES ,recovery:Lock, restart after recovery

Short-circuit protection: YES, automatic recovery after problem solved

Temperature protection: YES,recovery:Lock, restart after recovery

Overcurrent protection: YES,recovery:Lock, restart after recovery

AD-220-5V
